Barbed Wire

Barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized or PVC coated to prevent corrosion.

BARBED WIRE is easy to be installed in many ways.Straight barbed tape wire is installed quickly. It also can save cost and at the same time achieve the effect of frightening and stopping.

Material : high quality low carbon steel wire , stainless steel wire , PVC coated wire .
Surface Treatment:Electro galvanized,Hot dip galvanized,Plastic Sprayed.
Packing : in coil by bulk , carton or pallet according to the customers' requirements
Usage : Barbed wire can be used as the protection net in industry, agriculture, animal husbandry, dwelling house, plantation of fencing, grass boundary, railway, highway and so on.

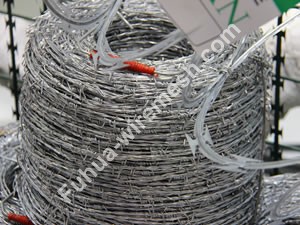

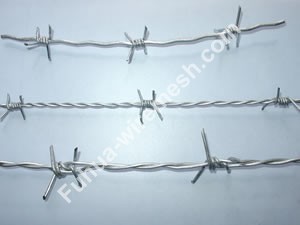

Barbed Wire
Barbed Wire
Barbed Wire

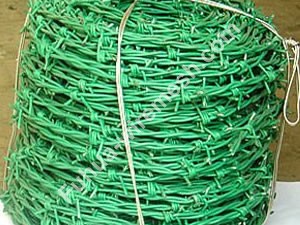

PVC Barbed Wire

Barbed  Wire  Specification

Type

Wire Gauge (SWG)

Barb  Distance(cm)

Barb  Length(cm)





Electric  Galvanized  Barbed Wire

Hot-dip  Galvanized  Barbed Wire

10# x12#









   7.5--15









1.5--3

12# x12#

12# x14#

12-1/2# x 12-1/2#

12-1/2# x 14#

13# x 13#

13-1/2# x 14#

14# x14#

14# x16#

15# x15#

15-1/2# x15-1/2#

16# x16#

16# x18#

18# x18#

PVC coated  Barbed Wire;
PE  Barbed Wire

Before coating

After coating



7.5--15



1.5--3

1.0mm--3.5mm

1.4mm--4.0mm

BWG 11#--20#

BWG 8#--17#

BWG 11#--20#

BWG 8#--17#

Color

Green, yellow,white,gray and orange

PVC 、PE coating thickness : 0.4mm--0.6mm ;
Different colors or length are available at customers request.
