Description:

1, Material: hot -dip galvanized sheet andwire or Stainless steel sheet and wire (ALSI 430 and  ALSI 304)

2, Outside diameter : 450mm, 500mm, 600mm,700mm, 800mm,900mm,960mm, 980mm

3, No. of Loops ： 33 ，56

4，With clips : 3 or 5

5, Package: Inner proof paper, outsideweave bag ( or as customer’ need )

Note: The length and the diameter of thecoil can be designed according to be the customer’s need

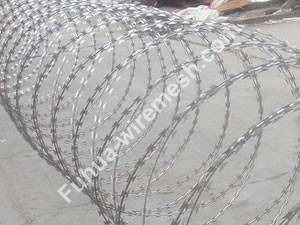

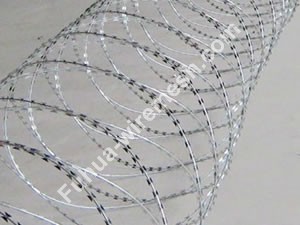

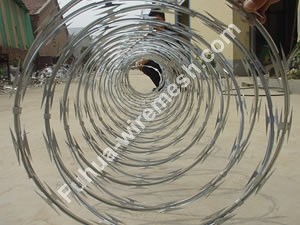

Cross Type Razor Barbed Wire

Cross Type Razor Barbed Wire

Cross Type Razor Barbed Wire

Cross Type Razor Barbed Wire

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2
